Layout of the 177 panels, electrical, mechanical, and structural
|
|

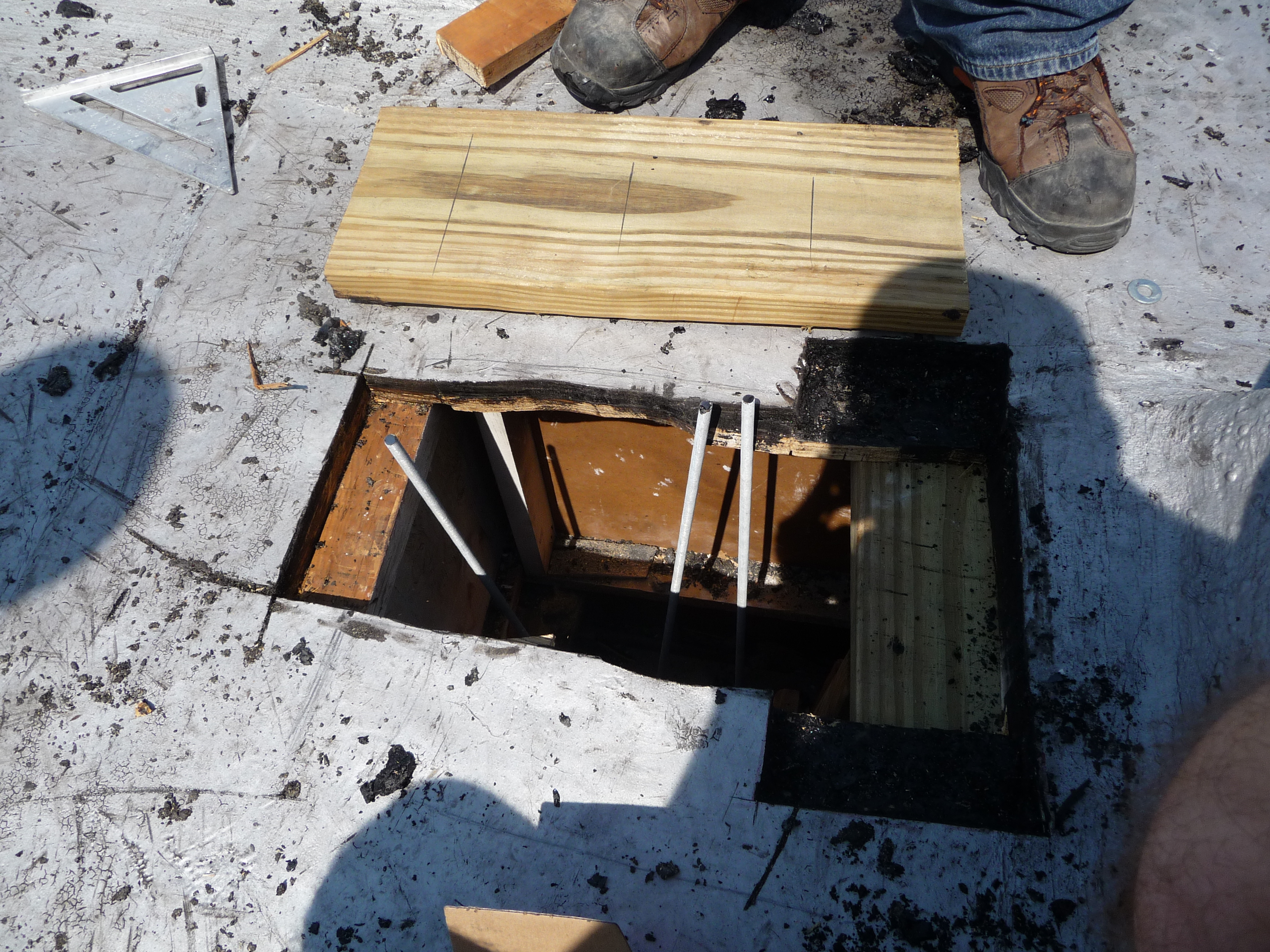

Base plate attachment using threaded rods to the load bearing wall
|
|
Finished baseplate
|
|

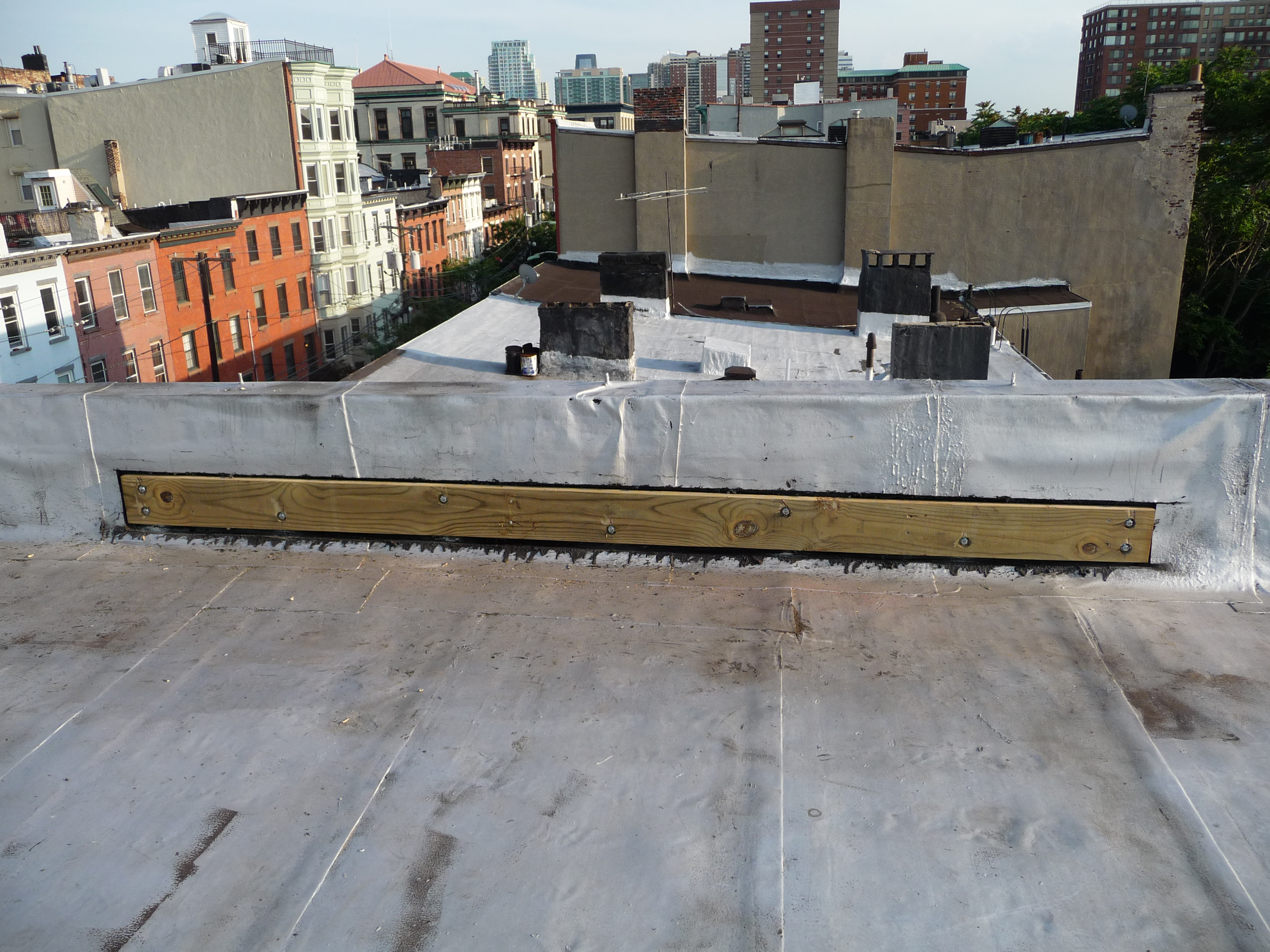

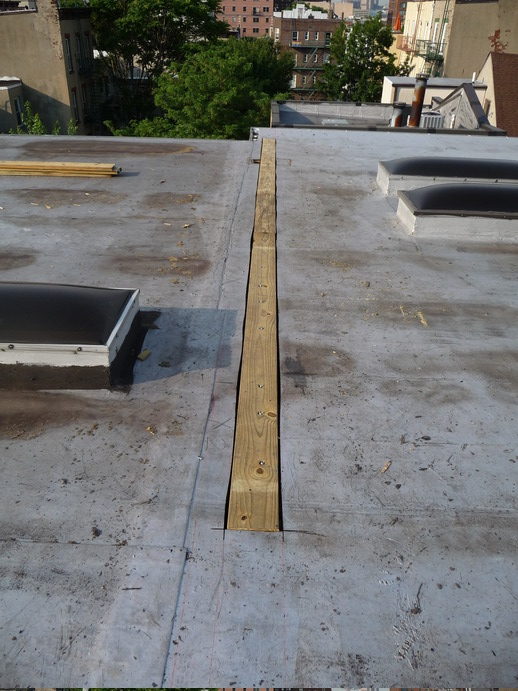

Ledger board on the parapet wall
|
|

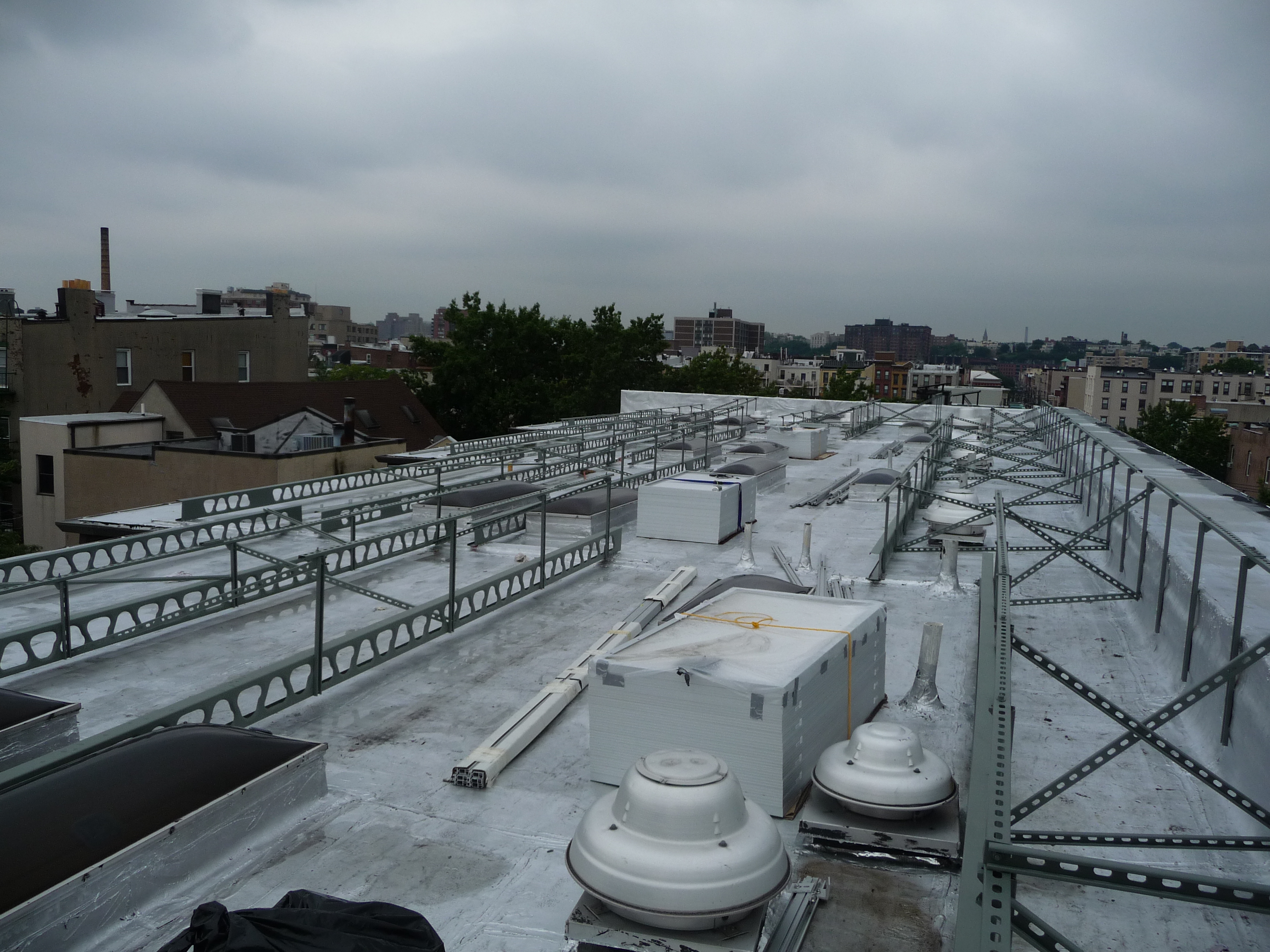

Finished steel frame structure
|
|

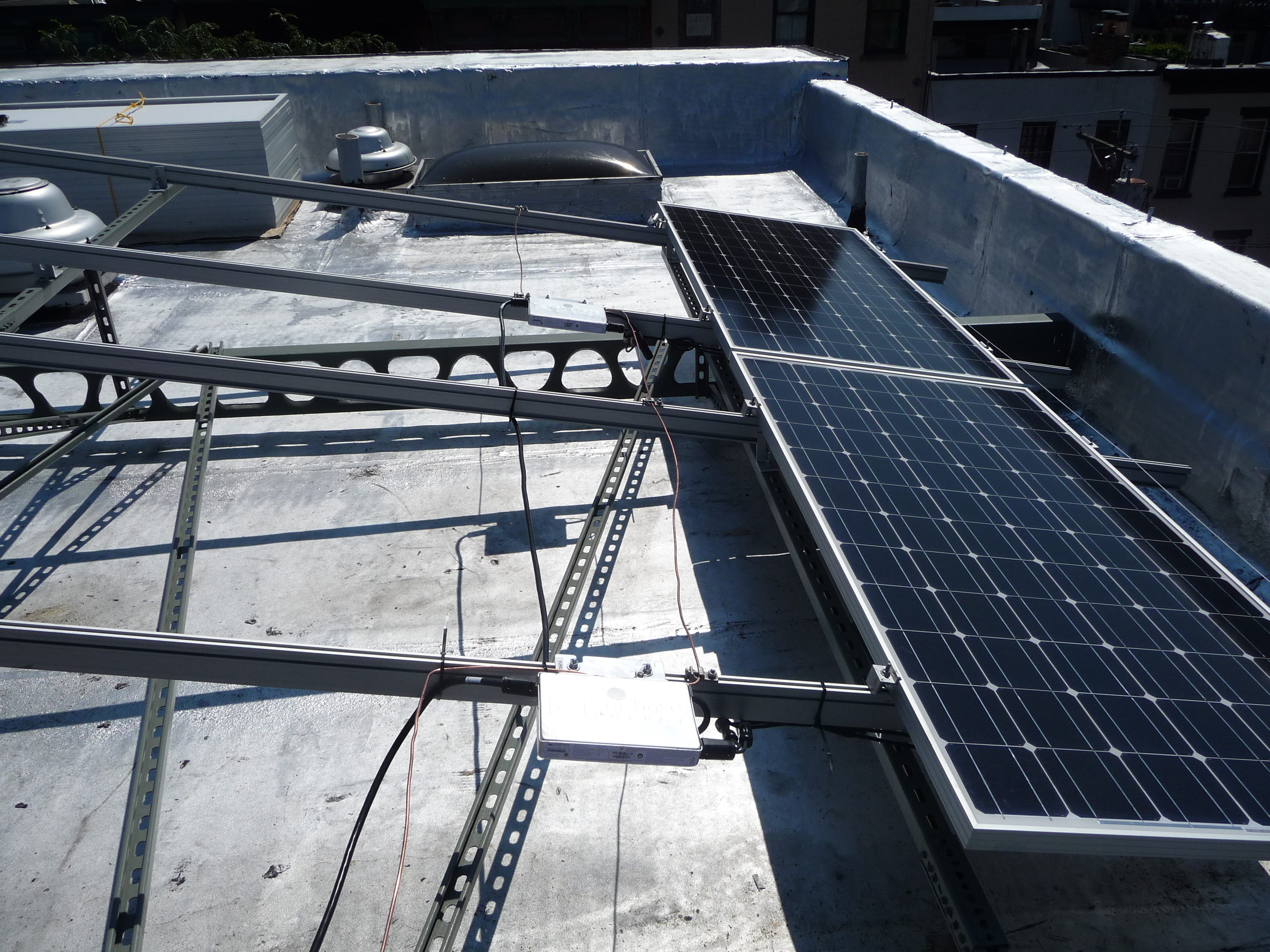

First 2 panels with two of the 12 Enphase microinverters
|
|

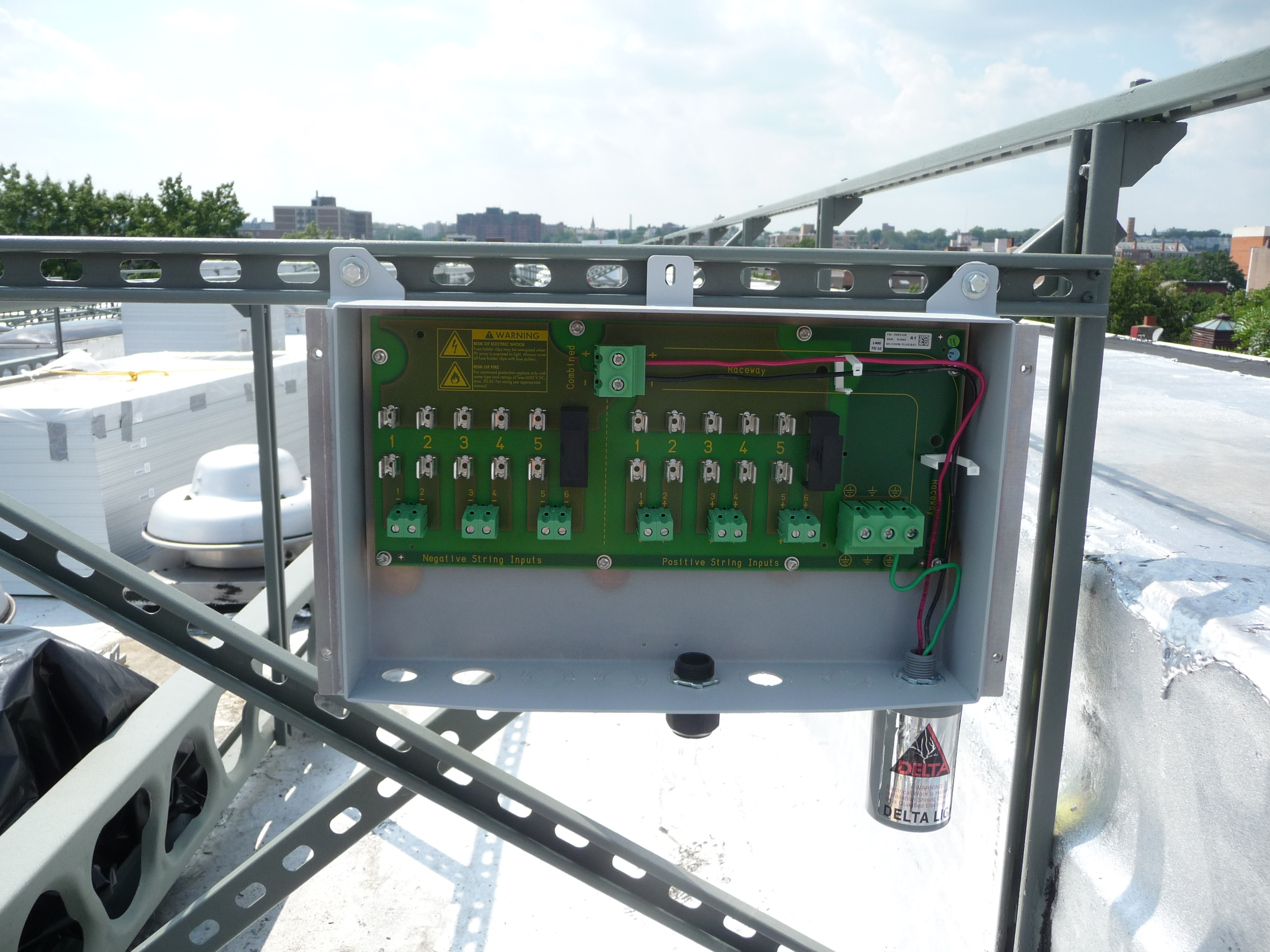

SMA string combiner
|
|

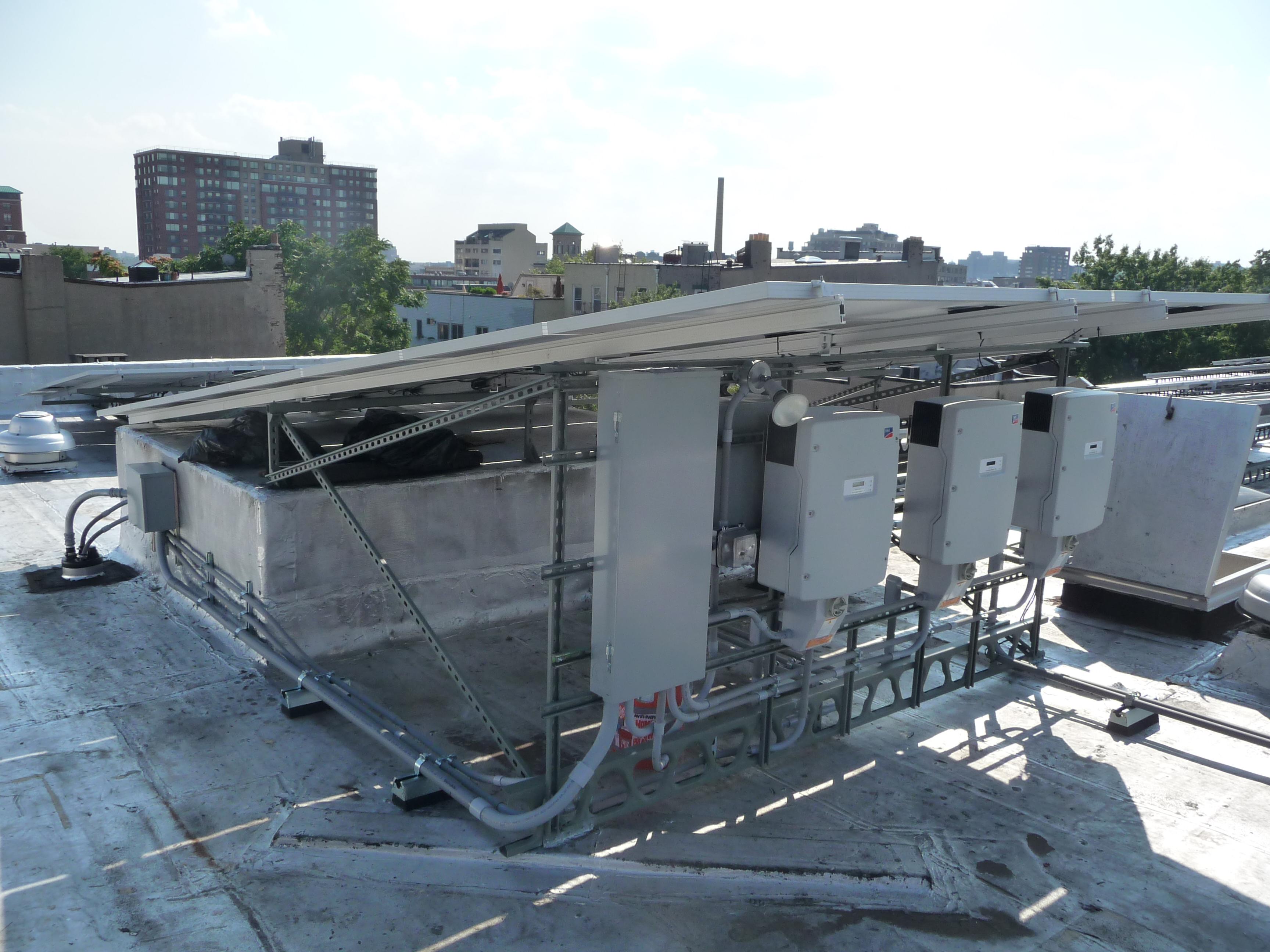

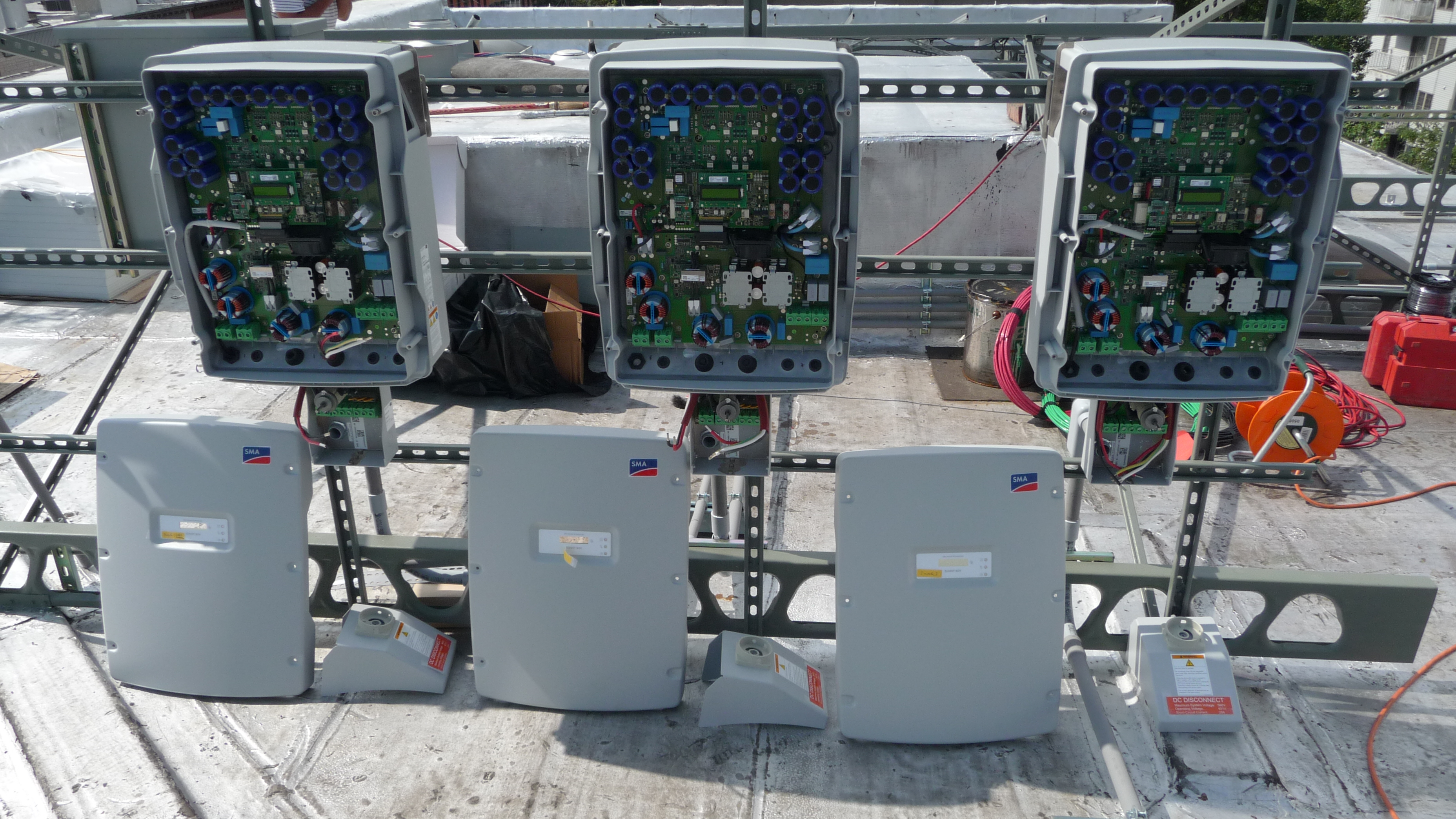

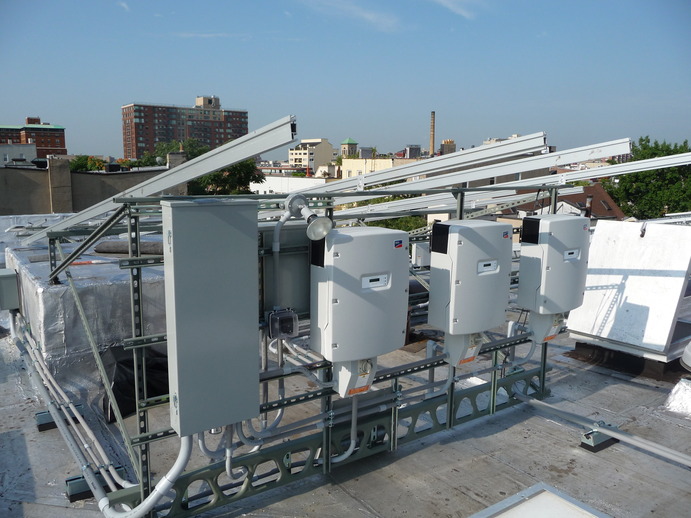

3 SMA transformerless string inverters, DC disconnect is underneath each inverter
|
|
Inverters, breaker panel, aluminum solar mounting rails at a 10 degree angle
|
|

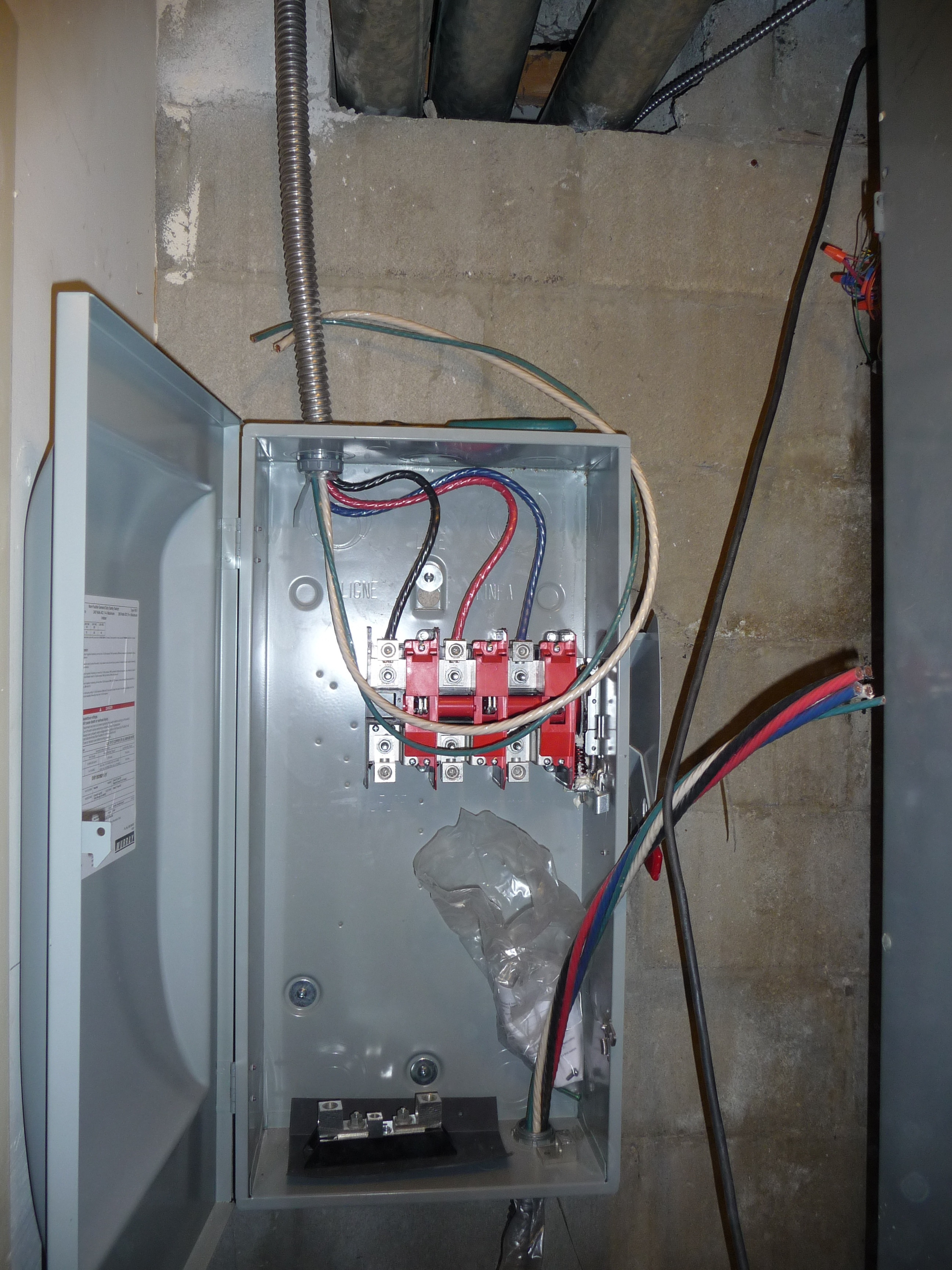

AC disconnect in basement electrical room
|
|
Solar panels partially installed
|
|

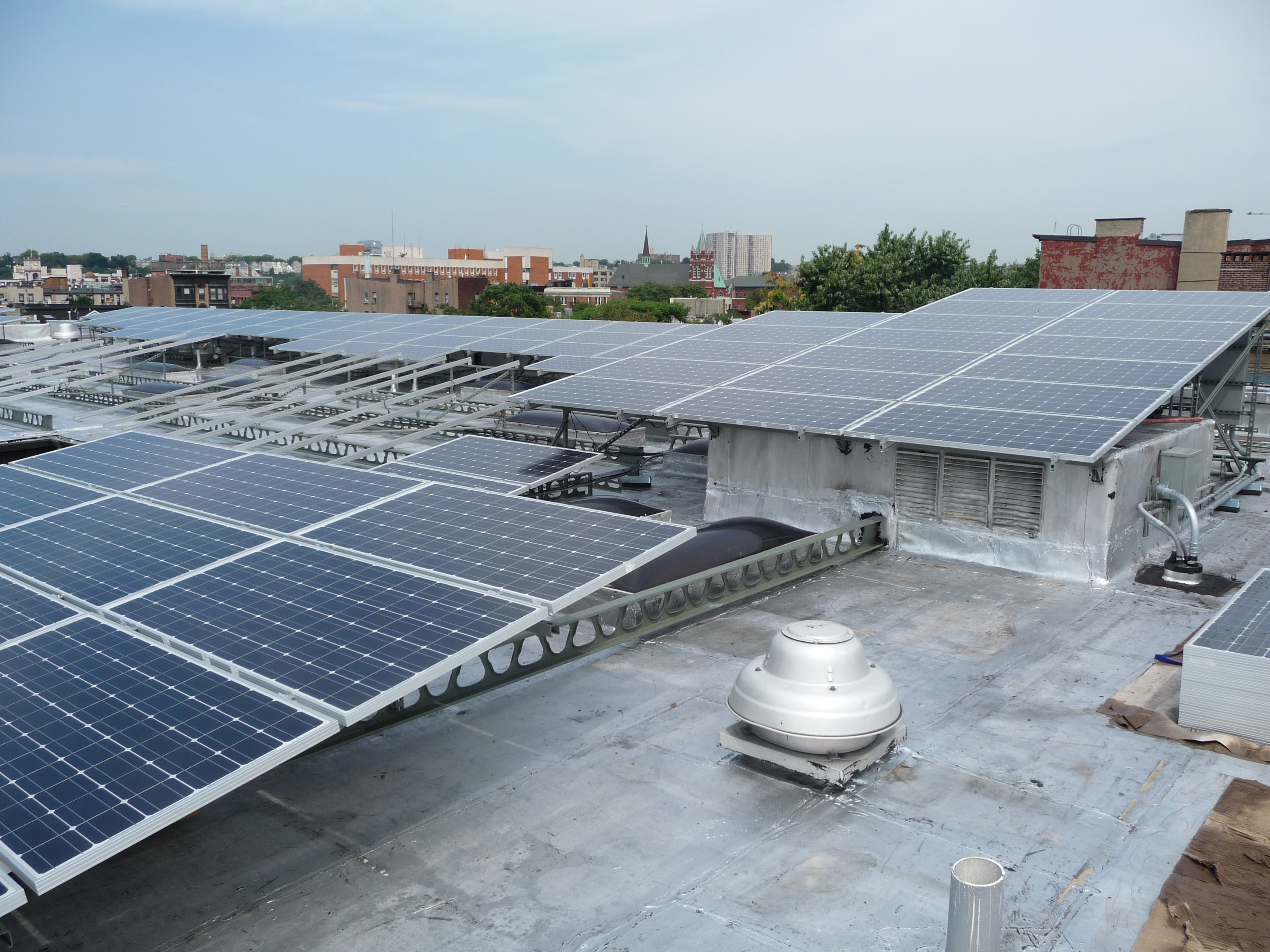

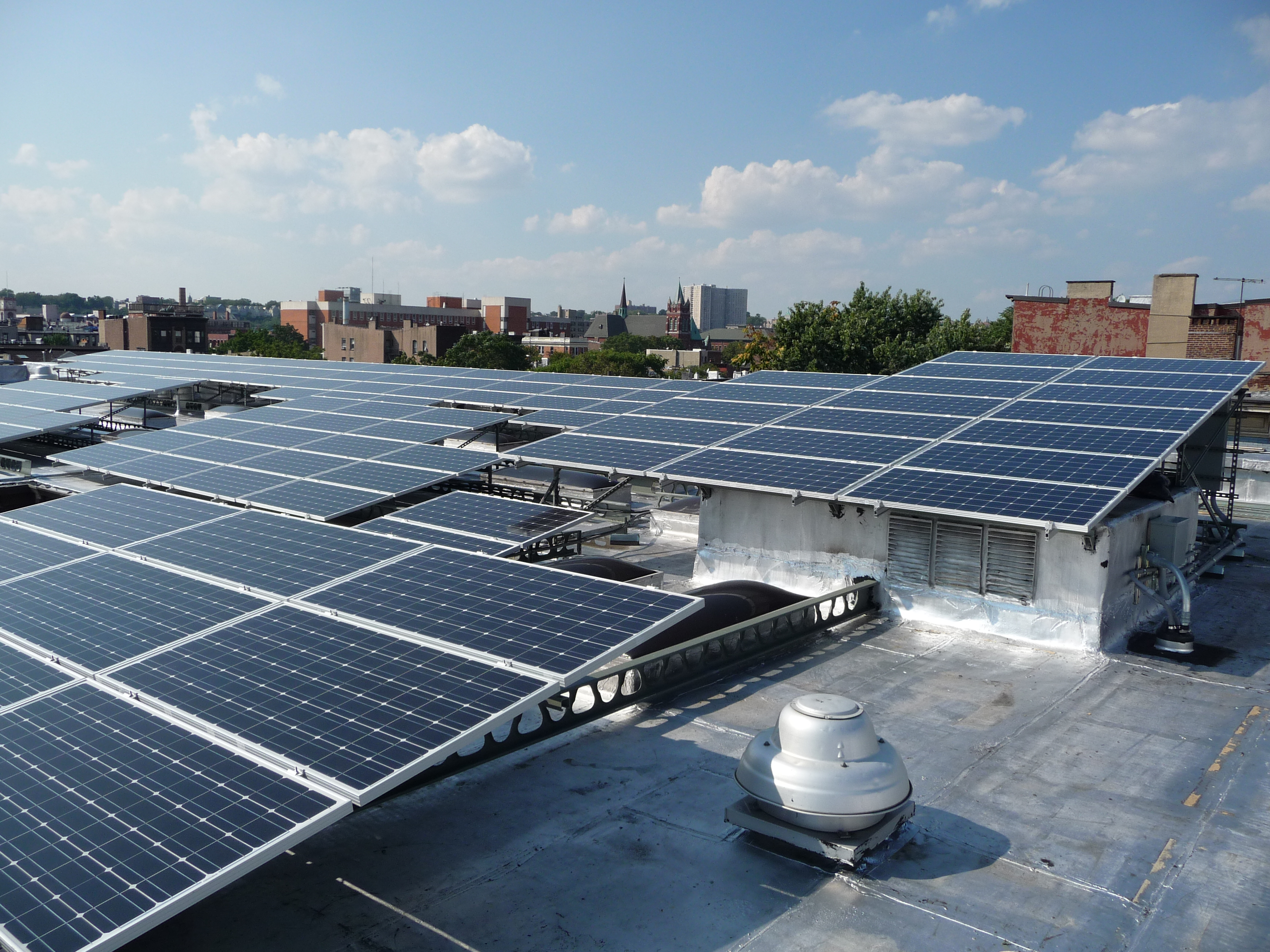

All 177 panels installed, looking west
|
|

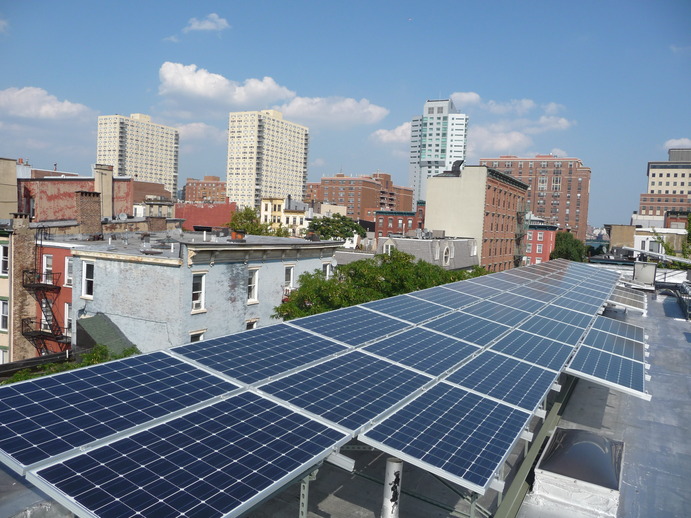

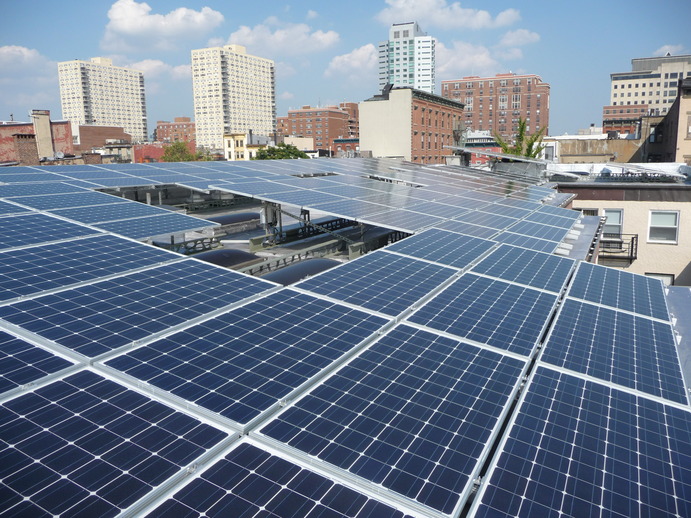

Solar array, looking east
|
|

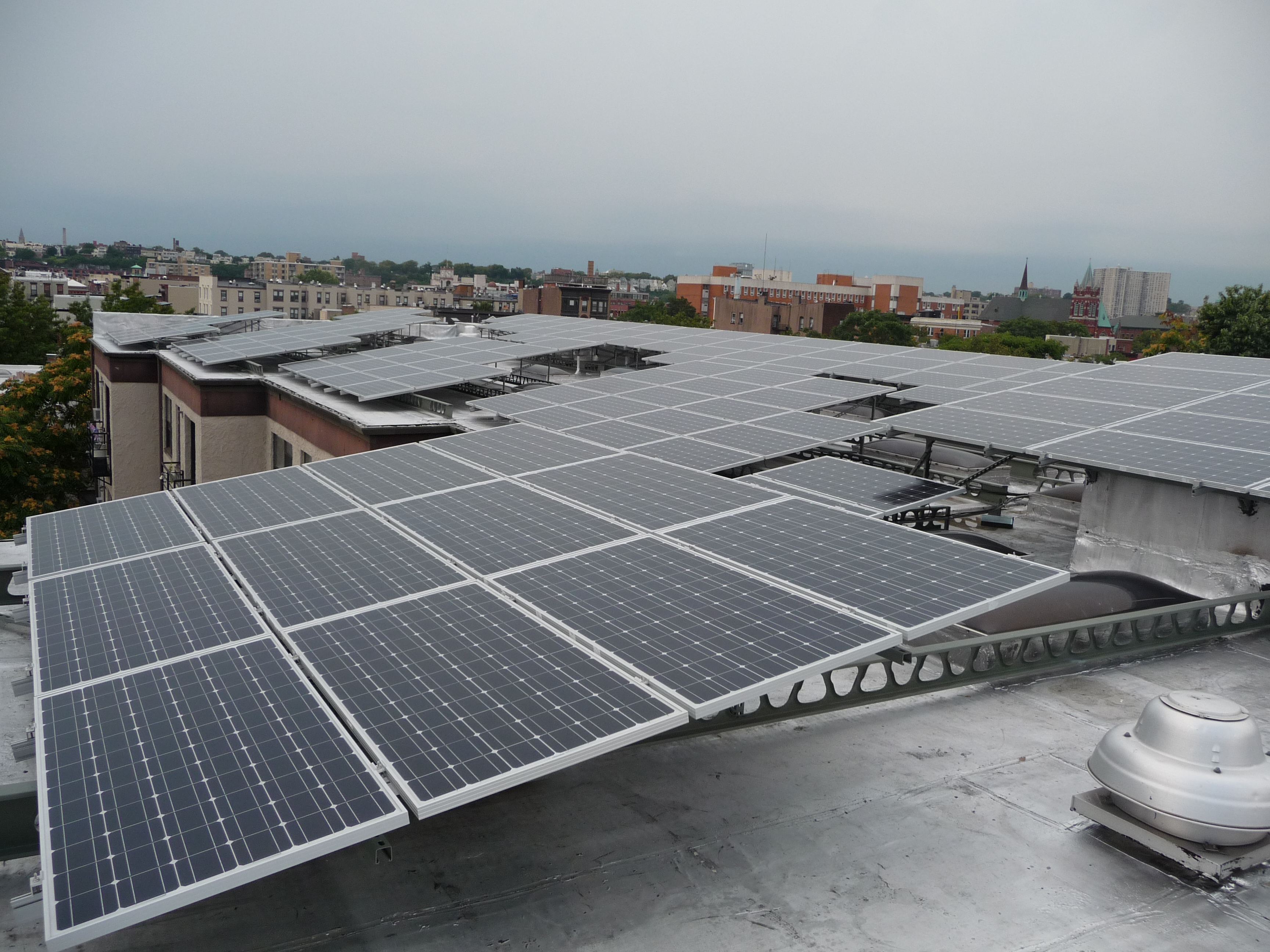

Array along the north parapet wall
|
|

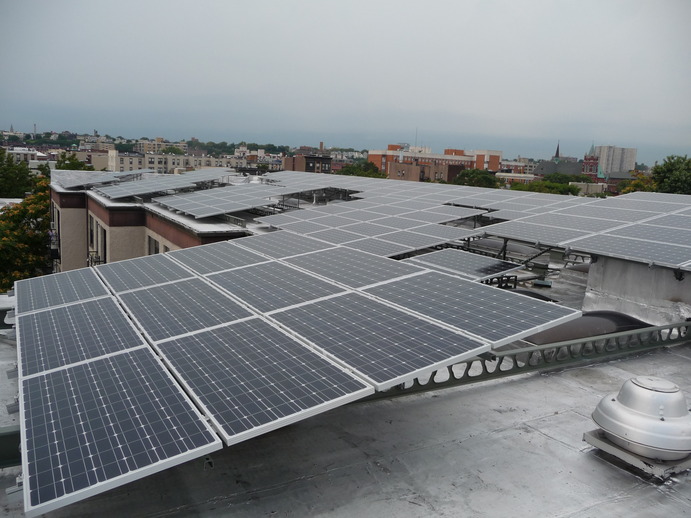

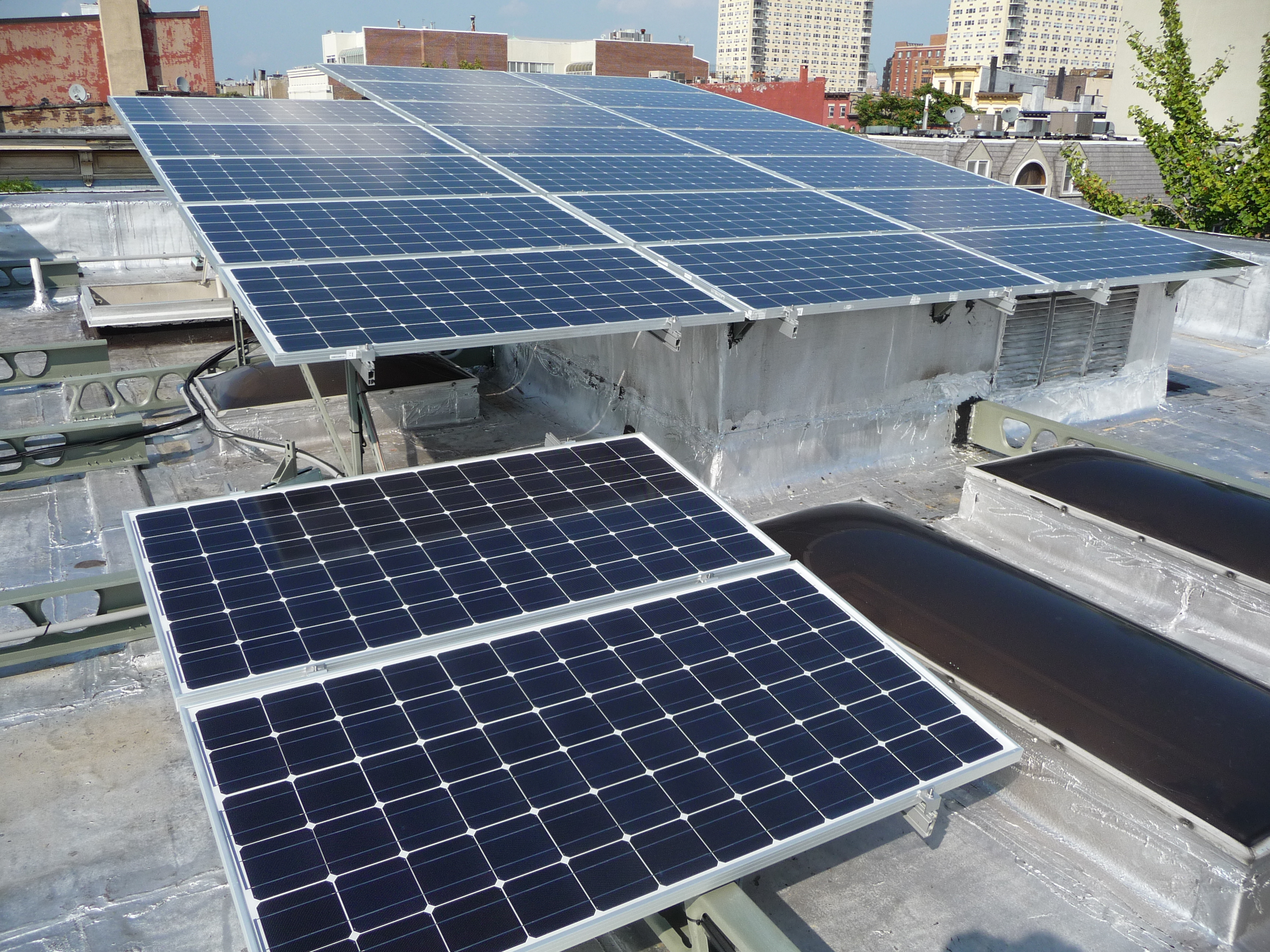

Panels over elevator bulkhead
|
|
View with the inverters
|
|

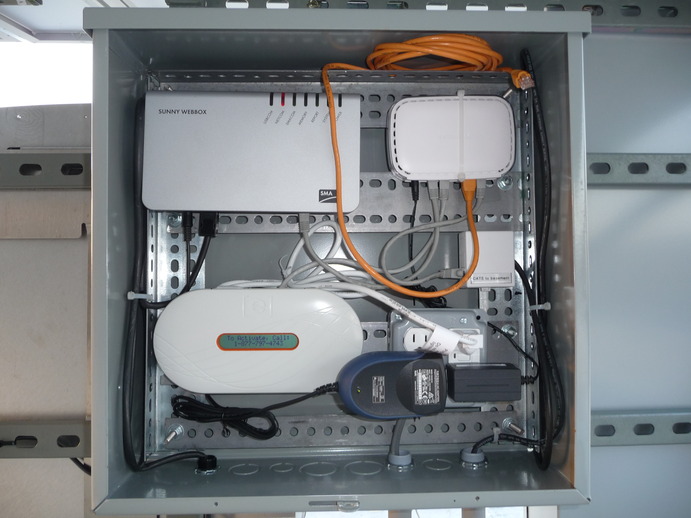

Communications box with SMA Webbox and Enphase Envoy monitoring systems
|
|
View looking north-west
|
